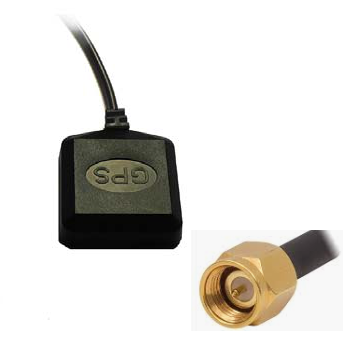

Sku: ANT-GPS-07-5M
AUD$19.84
Availability:
Many In Stock
Sku: ANT-GPS-07-5M
RF Cable & Antenna
Elecom Electronics Supply
| Frequency (MHz) | 1575/1602MHz |
|---|---|
|
Bandwidth (MHz) |
+/-5MHz |
| VSWR | 1.5:1 |
| Gain (dBi) | 28 |
| Max Input power (W) | 50 |
| Input Impedance (Ω) | 50 |
| Polarization | RHCP |
| Antenna Length (mm) | 37.2×34×11 mm |
| Cable length | 5 Meter |
| Connector | SMA |
| Mounting | Magnet |
| Storage Temperature | -45C to+85C |
| Operating Temperature | -40C to+85C |
Datasheet: ANT-GPS-07-5M.pdf
