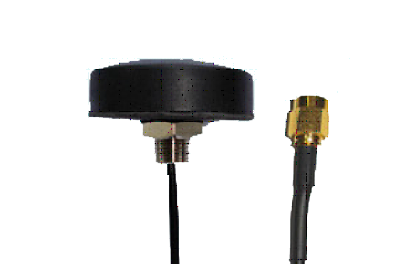

Sku: ANT-GPS-06-XLNA-1M
AUD$12.90
Availability:
Many In Stock
Sku: ANT-GPS-06-XLNA-1M
RF Cable & Antenna
Elecom Electronics Supply
| Frequency (MHz) | 1575MHz |
|---|---|
|
Bandwidth (MHz) |
+/-5MHz |
| VSWR | 1.5:1 |
| Gain (dBi) | 4 |
| Input Impedance (Ω) | 50 |
| Polarization | RHCP |
| Antenna Length (mm) | Φ46 ×14.5 mm |
| Cable length | 1 Meter |
| Connector | SMA |
| Mounting | bottom screw mount |
| Storage Temperature | -45C to+85C |
| Operating Temperature | -40C to+85C |
Datasheet: ANT-GPS-06-XLNA.pdf
