485 Converter - inbuilt watchdog

Sku: ATC-2000

AUD$155.00

Availability: Many In Stock

Sku: ATC-2000

Product Type: Ethernet

Vendor: Elecom Electronics Supply

Description
Reviews (0)

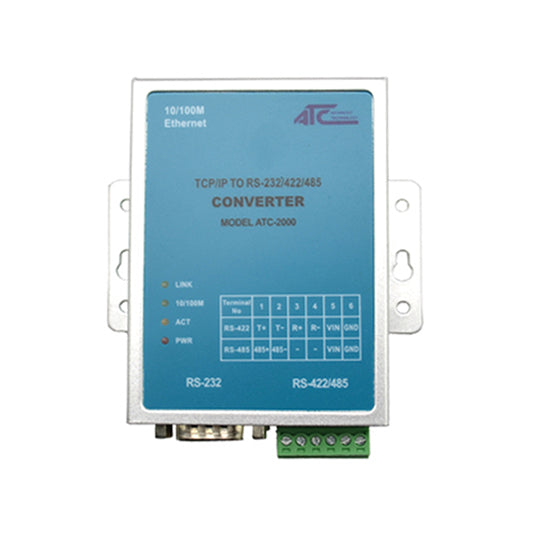

The ATC-2000 is a RS232/RS485 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, ATC’s ATC-2000 provides not only a robust and high performance system to make your device connecting to Network, but also ease installation and Internet access. The ATC-2000 Web Configurator is a breeze to operate and totally independent of the operating system platform you use

Product Feature:

RS-232/422/485 3 in 1 interface
Support 10/100Mbps Ethernet port
Supports 4-wire and 2-wire RS-485 work mode
Automatic data direction control on RS-485
Supports 9-24VDC industrial power supply
Support 15 KV ESD and 600W Surge protection
Terminal block easily for RS-422/485 installation
Configure via webpage and windows utility
Supports virtual serial port,TCP Server/Client and UDP work mode
Supports up to max 4 TCP clients connection
CPU: 16 bit CPU, 100MHz
Memory: 256KB ROM, 768KB SDRAM
Built-in watchdog, system never halt
Keep alive check support
Username and Password for Webpage management
Built-in HTTP server for easy remote installation and management via Web Browser
Support Backup and Restore Configuration
CE, RoHS and FCC Certifications

Serial Interface
Interface Type	RS-232/485/422 3 in 1
Data Rate	1,200bps to 230,400 bps
Data Length	5,6,7,8 bits
Parity	Odd, Even, None, Space, Mark
Stop Bits	1,2 bits
Flow Control	None, Software: Xon/Xoff, Hardware: RTS/CTS
Connector	RS-232		DB-9 male
	RS-485/422		6-pin Terminal block
Serial Line Protection	15 KV ESD and 600W Surge protection
Network Interface
Interface Type	Ethernet 10/100Mbps (Auto-Sensing), Half/Full Duplex
Connector	8-pin RJ-45
Magnetic Isolation Protection	Built-in 1.5KV
Software
Network Protocols	TCP,UDP,DHCP Client, HTTP Server, DNS Client
Configure Options	Web Page,Windows Utility
Security	Username and Password for Webpage management
Backup and Restore Configuration	Yes
OS support	Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/WIN10
System
CPU	16 bit CPU, 100MHz
Memory	256KB ROM, 768KB SDRAM
LED Indicators	LINK		10/100Base-TX Link & Activity Indicator
	ACT		Date Transmitting between Serial and Ethernet
	PWR		Power indicator
Power Supply	9~24VDC (Power consumtion : 250mA max)
Physical Characteristics
Installation	DIN-Rail Mounting
Housing	Iron (1mm)
Weight	0.45Kg
Dimensions	Without ears		100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)
	With ears		100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
Environmental Limits
Operating Temperature		-20 ~ 70°C (-4 ~ 158°F)
Storage Temperature		-40 ~ 85°C (-40 ~ 176°F)
Ambient Relative Humidity		5% to 95%(non-condensing)
Standards and Certifications
RoHS, CE, FCC
