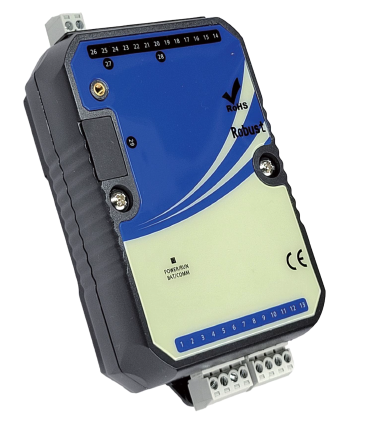

A9N - Small Industrial Edge Computing Controller with Node RED support

The A-9N provided by ATC is a Fanless Edge Computing Controller for Ethernet and serial port. Compared with traditional Industrial controllers, various interfaces help mutual data exchange, and shared program support various industrial projects.

The A-9N can be used for Ethernet data transmission and other functions through its third party 4G / 5G communication module. With the third party GPS function, the A-9N can also be used as a GPS tracking system for vehicle management or maritime system.
It can be used in M2M application to transmit remote I/O, Modbus data or camera video.

Within the high-performance CPU, the A-9N can process large amounts of
data and is suitable for harsh industrial environments.

Specification:

CPU
- TI Cortex-A8 ARM 1GHz
Memory
- DDR3 512MB onboard
Storage
- eMMC 8GB onboard
Expansion
- 1 x USB 2.0 Host for Wi-Fi module / USB-HUB / KEYboard
I/O Interface-Front
- 1 x Power LED
- 1 x RJ-45 10/100M fast Ethernet with LED
- 1 x USB Host 2.0 type A
- 1 x Phoenix connector for power
    (24~36VDC)/GND/ignition input
I/O Interface-Rear
- 1 x HDMI for 1920 x 1080@60Hz output
- 3 x RS-485
Power Consumption
- Max 10W
Power Management
- Auto Boot
Operating System
- Linux (Debian 11.5)
- Built-in NODE-RED
Dimensions
- 72mm (W) x 118mm (D) x 34mm (H)
Weight
- 0.2kg
Environment
- Operating temperatures: -20°C to +70°C
- Storage temperatures: -20°C to +85°C
- Relative humidity: 90% (non-condensing)

Applications

       Main Feature

• Ready-to-use IoT gateway to accelerate IoT project deployment
• Open architecture support both ARM-based IoT gateway
• One-click deployment to cloud
• Cloud SCADA presentation
• Real-time information response
• Support Modbus,OPC-UA,MQTT,SQL,BACNET...
