Sku: R718PB13-AS923
AUD$626.15
Availability:
Many In Stock
Sku: R718PB13-AS923
LoRawan
Netvox

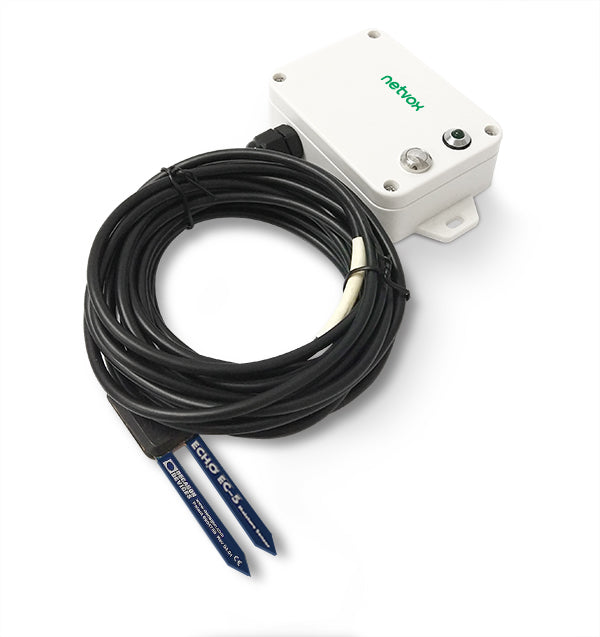

NETVOX Wireless Sensor R718PB13 is a ClassA type device based on the LoRaWAN protocol.
The R718PB13 is connected to the EC-5 soil sensor, and the soil moisture collected by the sensor is reported to the corresponding gateway
Principle of Operation
NETVOX Wireless Temperature Sensor outputs the ambient temperature in degrees Celsius. It is programmed to sleep for a user-given time interval (heartbeat) and then wakeup. To stay within the abilities of the processor, the temperature is computed off a data table provided by the manufacturer.
Example Applications
- Soil moisture content detection
- Other
Features of NETVOX Sensors
• Wireless range of 10 km *
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Battery Life* :
5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*Actual range may vary depending on environment.
*Battery life is determined by sensor reporting frequency and other variables
Technical Specifications
| Input Power | 2 x 3.6V ER14505 AA lithium batteries |
|---|---|
| Sleeping Mode | 38uA |
| Wake up Mode | 6.3mA @ 3.3V |
| Low Voltage Threshold | 3.2V |
| Tx Current | 120mA/3.0V |
| Rx Current | 11mA @3.0V |
| Battery Life |
5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10) |
Frequency
| Tx Power | 19dBm±1dBm |
|---|---|
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Build-in antenna |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment |
EC-5 Sensor
|
Rated power Supply |
2.5VDC |
|
Water Content Detection |
±3%VWC |
|
Moisture Content Resolution |
0.1% VWC in mineral soil, 0.25% VWC in growth medium |
|
Moisture Content Detection |
0-100%VWC |
Physical
|
Dimension |
L:112mm*W:65mm*H:32mm Sensor cover size: D: 16mm*L: 34.5mm, |
|
Weight |
160g |
|
Operating Temperature |
-40℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
Datasheet:
R718PB13.pdf
User manual:
R718PB13_UG.pdf
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
