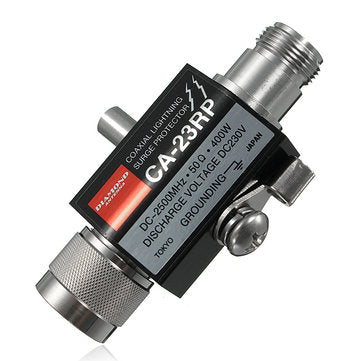

Sku: ANT-Lightning Protector
AUD$32.86
Availability:
Many In Stock
Sku: ANT-Lightning Protector
RF Cable & Antenna
Elecom Electronics Supply
|
Frequency range |
DC2500MHz |
|
VSWR |
Less than1.1 |
|
Loss |
Less than 0.2dB |
|
Withstand power |
400W PEP |
|
Voltage at discharge start |
DC350V±15% |
|
Discharge voltage of shock wave(1 x 40)S |
1,000V |
|
Withstand current of shock wave(1 x 40)S |
6,000A |
|
Repetitive discharge of shock wave(1 x 40)S 500A,over 500 times |
DC350V±20% |
|
Insulating resistance DC 100V |
Over 10,000M |
|
Connector |
N Type |
|
Outer dimensions (Max.value incl.connector) |
77W x 41H x 20Dmm |
