Sku: DC500-NB
AUD$185.59
Availability:
Many In Stock
Sku: DC500-NB
Dingtek

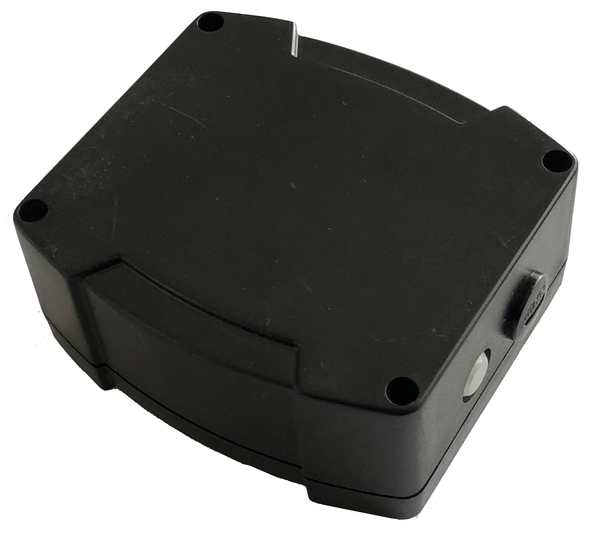

The DC500 PIR type NBIOT people counter is a cost effective people counter solutions which is suitable for using in outdoor and indoor gate as well as the sliding door, shopping centre hallway and disable toliet door ...etc
The sensor is designed to report in periodic mode like every 1 hour or 24 hours, and it will also to report when the sensor reached a certain number of count, like 500 count etc, so it could be used for estimate the number of people access the monitor area, so as to provide a instant information to the manager.
The IP65 waterproof level can meet stringent requirements for use and make it for use long life
Based on low-power algorithm, internal battery can work for more than 1 years, measured based on setting report schedule at 50 people count and 50 report per day, total 2500 people count
Feature:
- Internal battery can work for more than 1 year
- using NBIOT cellular technology support B1，B3，B5，B8，B20，B28
- IP65 waterproof protection Level
- Sensitivity can be adjusted via command
- Set up number of counts threshold for reporting
- Set up periodic report time
Applications:
- Shopping centre Hallway access people counting.
- Outdoor access gate people counting.
- Disable toilet access people counting.
- Sliding door access people counting.
Specifications:
|
Overview
|
Dimension
|
80*78*30mm
|
|
Net Weight
|
40g
|
|
|
Color
|
Black
|
|
|
Shell Material
|
ABS
|
|
|
Detector
|
Principle
|
PIR sensor 120 degree
|
|
Detection Range
|
5 meters
|
|
|
Delay time
|
2 sec | |
|
|
||
|
MCU
|
STM32, 32bit ARM® core controller
|
|
|
NBIOT Module
|
BC35-G
|
|
|
Controller
|
Sensitivity
|
"-137dbm@292bps (RX), 5~20dbm(Tx)
|
|
Radio
|
Frequency |
B1，B3，B5，B8，B20，B28
|
|
Protocol |
NB-IoT,TCP |
|
|
|
|
|
|
Communication Distance |
3km in view sight; |
|
Power |
Batter Life |
If you upload data 50 times a day, the |
|
Internal Battery |
ER26500 Lithium Battery 8000mAh @ 3.6V, |
|
|
External Power supply |
6-13.8VDC |
|
|
|
Current |
<120mA@3.6V(uploading), <40uA@3.6V(sleep), |
|
Environment |
Operating Temperature |
-20 ~ +60℃ |
|
Storage Temperature |
-40 ~ +85℃ |
|
|
Protection Level |
IP65 |
Product Brief: DC500NB_PB.pdf
Operation manual: DC500NB User manual.pdf
Configure manual: DC500NB config manual.pdf
Protocol manual: DC500NB TCP Protocol manual.pdf
Dingtek Configure tools: Dingtek config tools.zip
UART assist program: UARTASSIST.zip
