Sku: ANT-BL-900-3
AUD$75.04
Availability:
Many In Stock
Sku: ANT-BL-900-3

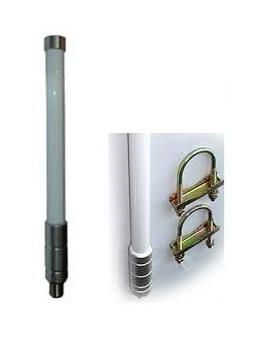

RF Cable & Antenna
Elecom Electronics Supply
| Frequency (MHz) | 820-960MHz |
|---|---|
|
Cover |
Fibre Glass |
| VSWR | ≤ 1.5 |
| Gain (dBi) | 3 |
| Max Input power (W) | 500 |
| Input Impedance (Ω) | 50 |
| Polarization | Vertical |
| Antenna Length (mm) | 330 |
| Cable length | see option |
| Connector | N-Female |
| Mounting | U- mount |
| Storage Temperature | -30C to+85C |
| Operating Temperature | -30C to+85C |
Datasheet: ANT-BL-900-03.pdf
