Quectel Pentaband 3G HSPA SMT module

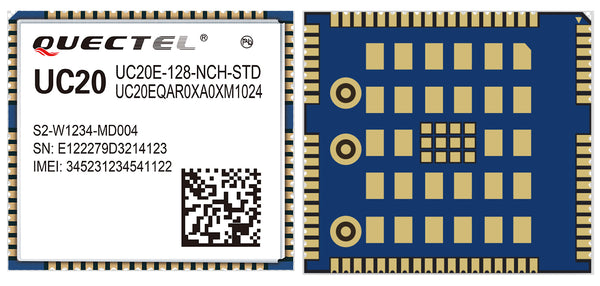

Quectel UC20-G Pentaband 3G module

Quectel UC20-G is a powerful function UMTS/HSPA+ module offering a maximum data rate of 14.4Mbps downlink and 5.76Mbps uplink. UC20-G is designed to provide customers with global network coverage on the connectivity of UMTS/HSPA+. It can also be fully backward compatible with existing EDGE and GSM/GPRS networks through multi-band combination of penta-band UMTS and quad-band GSM.

The tiny profile of 32.0×29.0×2.5mm in cost optimized SMT form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity. Its advanced LCC package allows fully automated manufacturing for high volume applications.

A rich set of Internet protocols, industry-standard interfaces (USB /UART /PCM /ADC /NETLIGHT /SD /Rx-diversity) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8, Windows CE, Linux, Android/eCall/GNSS) extend the applicability of the module to a wide range of M2M applications such as automotive, metering, tracking systems, security solutions, routers, wireless POS, mobile computing devices, PDA, and tablet PC

Key feature

• UMTS: 800/850/900/1900/2100MHz and GSM: 850/900/1900/2100 MHz
• Downlink:14.4 Mbps, Uplink: 5.76 Mbps
• Embedded GPS, GLOANSS, A-GPS function
• Embedded with QuecLocator for cell location services
• Support 2 UART ports (Full function and debug)
• Support USB 2.0 High speed
• Support PCM Voice Multiple GPIOs
• Support 2 x ADC 15 bit interfaces
• Embedded with TCP/IP stack, FOTA, STK
• Extended operation temperature -40 to 85C
• Support Win7/8, Linux, Android OS
• Support Rx-diversity antenna
• Compact size in 32.0×29.0×2.5mm
• CE/GCF/FCC/PTCRB/AT&T/OFCA/NCC/RCM/IC/Rogers/Vodafone/KC/NAL/TA approved
• miniPCIE card format is available

Datasheet:           UC20-G product brief.pdf

HW Design :         HW Design guide.pdf

AT command:      AT command.pdf
