EG21G - Quectel LTE Cat1 module- Global version - 10Mbps

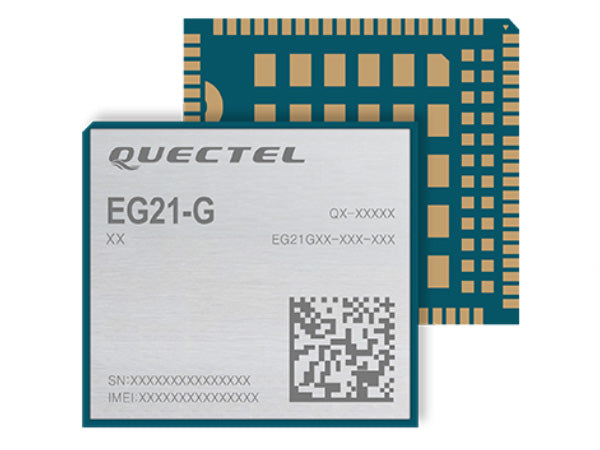

 Quectel EG21-G Global version - 10Mbps Downlink

Quectel EG21-G  is an LTE Cat 1 module. It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 10Mbps downlink and 5Mbps
uplink.

EG21-G is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EG21-G supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable
positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, security and alarm systems, and so on.

Key feature

• FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
• TDD LTE: B38/ B39/ B40/ B41
• WCDMA: B1/ B2/ B4/ B5/ B6/ B8/ B19 ;
• GSM: B2/B3/B5/B8
• LTE Downlink:10Mbps, Uplink:  5Mbps
• HSPA+ Downlink:42Mbps, Uplink:  5.76Mbps
• Embedded GPS/GLONASS/BeiDou/Galileo/QZSS function
• Embedded with QuecLocator for cell location services
• Support 1 four line UART ports
• Support USB 2.0 High speed
• Embedded with TCP/IP stack, FOTA, STK
• Extended operation temperature -40 to 85C
• Support Win7/8/10, Linux, Android OS0/4.2/4.4/5.0/5.1/6.0
• Support Rx-diversity antenna

Datasheet:        EG21-G .pdf

 HW guide:         EG21-G HW guide.pdf

 AT command:    AT command.pdf
