Sku: G62-4G
AUD$239.73
Availability:
2 In Stock
Sku: G62-4G
Cellular/GPRS/HSPA
Digital Matter

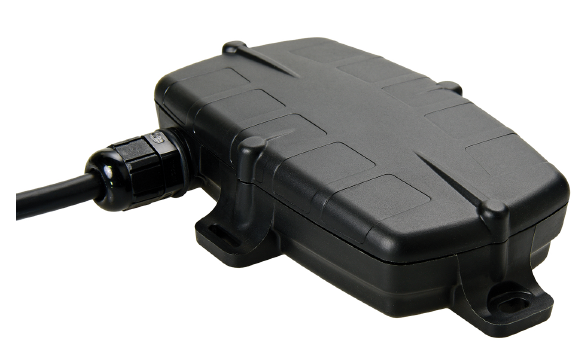

The G62 equipped with ultra-rugged enclosure, feature-rich vehicle, trailer, or heavy equipment tracking device with customizable inputs/outputs, remote immobilization for fleet management, equipment monitoring, driver ID, theft recovery, and more
- High-precision GPS/GLONASS tracking device
- Hardwired to permanent power for real-time tracking
- Ultra-rugged and weatherproof IP67 nylon glass housing with compact and ergonomic design
- Internal Backup Battery in case of loss of power or tampering
- 2 x Digital Inputs, 1 x Switched Ground Digital Output, 1 x Ignition Digital Input
- Configure iButton® for Driver ID
- Run hour monitoring, accident and rollover detection, speeding, harsh braking, and more
- Cellular 2G or 4G LTE-M / NB-IoT
CONNECTIVITY
The G62 is available in either 2G or 4G LTE-M / NB-IoT.
| 2G | 2G: SARA-G350-02S-01 850/900/1800/1900 MHz |
| 4G LTE-M / NB-IoT | uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands) |
| SIM Size & Access | Internal Micro 3FF SIM |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| AssistNow Offline | GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF). |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail. |
POWER
| Input Voltage | 8-36V DC (max) |
| Self-Resetting Fuse | Built-in self-resetting fuse makes installation simple and safe. Stringent automotive power “load dump” tests are conducted to ensure operation in the harshest electrical systems. |
| Operating Current | ~25/50mA when moving ~150mA battery charging |
| Sleep Current | <1mA |
| Back-Up Battery | 1100mAh LiPo internal backup battery pack |
MECHANICS / DESIGN
| Dimensions | L 125 x W 80 x H 25 mm |
| Weight | 170g |
| Housing | Ultra-Rugged Nylon Glass |
| IP Rating | IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. -20°C to +60°C (connected to external power) |
| Installation | 7 wire harness 1m Length |
| Operating Temperature | -20°C to +60°C (connected to external power) At < 0°C and > +40°C the internal backup battery will not be charged as a safety precaution due to the dangers associated with charging batteries at extreme temperatures. |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, acceleration, high G-force events, and more. |
| Diagnostic LED | Diagnostic LED signifies operation status. |
| Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
INTERFACES
| Digital Inputs | 2 x Digital Inputs with configurable pull-up/down 0-48V DC input range On/Off thresholds: Pull-up enabled: low at 0.8V, high at 1.0V Pull-down enabled: low at 2.0V, high at 2.4V |
| Digital Outputs | 1 x Switched Ground Digital Output Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle |
| Ignition | 1 x dedicated ignition Digital Input 0-48V DC 5V on/off threshold |
| 1-Wire® or iButton® | 1-Wire® or “iButton®” can be used to read Driver ID tags. Readers available to suit multiple card formats. |
SMARTS
| Auto-APN | Auto-APN allows the device to analyze the SIM card and select the correct APN details from a list that is pre-loaded in the device’s firmware. |
| Accident & Rollover Detection | Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicle or equipment. Second-by-second GPS data is saved on the device’s flash memory, with a capacity of approximately 2 hours of data. In the event of an accident, a subset of the data (60 seconds before / 10 seconds after) is uploaded to the server automatically (if configured) or can be requested manually for a detailed reconstruction of the incident. |
| Driver ID Options | iButton® interface for Driver ID, access control, and logbooking. |
| Driver Safety & Behavior | Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles. |
| Geofencing | Create custom geofences and alerts if an asset enters or leaves specific locations. |
| Geofence Download to Device | Geofences can be downloaded directly to the device from Telematics Guru for enhanced location-based actions and alerts. Maximum of 20 Geofences with up to 30 points per geofence. |
| In-Vehicle Alerts | Can be wired up to external buzzers or lights for in-vehicle alerts. |
| Lone Worker Safety | Interface a variety of duress pendants to enable man-down alerts for lone worker safety monitoring. |
| Preventative Maintenance | Set reminders based on distance traveled and run hours to reduce maintenance and repair costs. |
| Real-Time Tracking | Device remains continuously connected while on the move for real-time asset tracking. |
| Theft Recovery |
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval. |
| Remote Immobilization | Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse, or unauthorized usage. |
| Run Hour Monitoring | Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization. |
| Sensor Monitoring | Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more. |
| Tamper Alerts | Instant alert if the device is removed from your asset or disconnected from its power source. |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. |
| OEM Server | Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system. |
INTEGRATION
| Third-Party Integration | Webhook, TCP or HTTPS, Direct and Data Splitting Integration Options |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | One year manufacturer’s warranty. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. |
4G – FCC, ISED, ACMA (DoC), CE (DoC) 2G – ICASA, CE (DoC) |
Datasheet: G62-4G product brief.pdf
