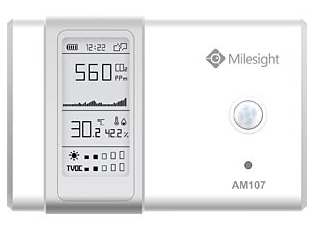

AM107 - Milesight IAQ LoRaWan sensor support Temp/Humidity/PIR/Light/TVOC/Pressure/CO2

Sku: AM107-AS923

AUD$453.22

Availability: Many In Stock

Sku: AM107-AS923

Product Type:

Vendor: Elecom Electronics Supply

Description
Reviews (0)

AM107 LoRaWan IAQ sensor - Integrated with Temperature / Humidity / Light / Motion / Air Pressure/ TVOC/ CO2

2x 1.5V AA size Alkaline cell Included

AM100 series is a compact indoor ambience monitoring sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure and motion. These data will be shown on the E-ink screen in real-time, which allow to quantify the indoor environment and comfort. AM100 series is widely used for offices, stores, classrooms, hospitals, etc.

Apart from screen display, sensor data is also transmitted using LoRaWAN® technology. With this low power consumption technology, AM100 series can work for one year with 2 AA batteries. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

Features

Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc, depends on Model
Standard AA batteries
One year work without replacing batteries
Equipped with NFC and type-C port for easy configuration
Compliant with standard LoRaWAN® gateways and network servers

Specifications

Model AM107 Wireless Transmission
Technology	LoRaWAN®
Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power	16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity	-137dBm @300bps
Work Mode	AM107: Class A
Sensors
Temperature
Range	-20°C - 70°C
Accuracy	0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution	0.1°C
Humidity
Range	0% - 100% RH
Accuracy	10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Resolution	0.5% RH
PIR
Detection Area	94 ° Horizontal, 82 ° Vertical
Detection Range	5 m
Status	Vacant/Occupied
Light
Range	60000 lux (Visible + IR, IR)
Accuracy	±30%
TVOC
Range	0 - 60000 ppb
Accuracy	±15 %
Resolution	1ppb
Long-term Stability	1.3 % accuracy drift per year
Barometric Pressure
Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±1 hPa
Resolution	0.1 hPa
Carbon Dioxide (CO₂)
Range	400 - 5000 ppm
Accuracy	±30 ppm or ±3 % of reading
Resolution	1 ppm
Display & Configuration
Display	2.13-inch Black & White E-Ink Screen
Configuration	1. Mobile App via NFC 2. PC software via NFC or USB Type-C port
Physical Characteristics
Power Supply	2 × AA Alkaline batteries or type-C port power supply
Battery Life* (10 min interval)	0.9 years (SF7) 0.7 years (SF10) 1.1 years（VOC disabled，SF7） 0.9 years（VOC disabled，SF10）
Operating Temperature	0°C - 45°C
Relative Humidity	0% - 100% (non-condensing)
Ingress Protection	IP30
Dimension	105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in)
Installation	Wall Mounting

Datasheet: AM107.pdf

User manual: AM107 user manual
