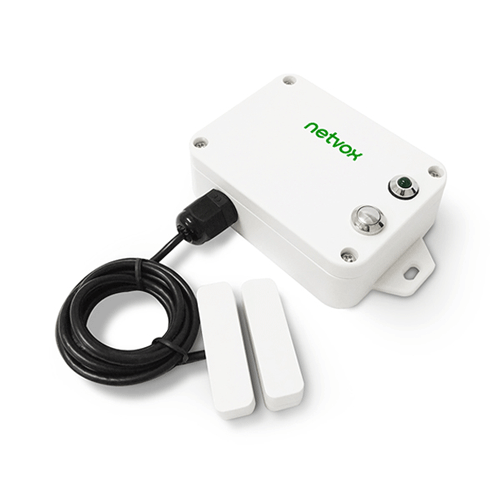

Netvox Wireless Reed Switch Open/Close Detection Sensor - R718F is equipped with a reed sensor, which can be used to detect the status of the door and window. Through the built-in wireless module, it can achieve wireless alarm and other functions. It uses the SX1276 wireless communication module.

Principle of Operation

The reed switch is on (conducting) within the magnetic range, and is off (nonconducting) when it's out of the magnetic range. The module can detect the closing and opening signals so that the state of the door window status can be detected.

Example Applications

Doors and windows
Production line tracking
Objects to be detected open / close status

Features of NETVOX Sensors

• Wireless range of 10 km *

• LoRaWANTM Class A compatible

• Frequency Hopping Spread Spectrum (FHSS)

• Improved interference immunity

• Improved power management for longer battery life

• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)

• Battery Life* :

5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)

• Over-the-air updates (future)

• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

• R718X series carry magnets which can be attached to ferromagnetic materials and objects

*Actual range may vary depending on environment.

*Battery life is determined by sensor reporting frequency and other variables

Technical Specifications

Input Power	2 x 3.6V ER14505 AA lithium batteries
Sleeping Mode	20uA
Wake up Mode	6.3mA @ 3.3V
Low Voltage Threshold	3.2V
Tx Current	120mA/3.0V
Rx Current	11mA @3.0V
Battery Life	5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)

Frequency

Tx Power	19dBm±1dBm
Rx Sensitivity	-136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Build-in antenna
Communication Range	Build-in antenna
Data Transfer Rate	0.3kbps～50kbps
Spread Technique	LoRa/FSK
Available Frequency	EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment

Physical

Dimension	L:112mmW:65mmH:32mm
Weight	141g
Operating Temperature	-20℃ ～ 55℃
Environment Humidity Range	<90% RH (No condensation)
Storage Temperature	-40℃ ～ 85℃
Sensor Case Size	L:43mmW:13mmH:12mm
Sensor Characteristic	Inside the magnetic rang, it is at on state (conducting). When out of the magnetic range, it is at off state (non-conducting). Sensing distance inside magnetic rang is 2cm.
Reed solderability	Good solderability
External Cable Length	1 Meter

Datasheet:

R718F.pdf

User manual:

R718F_UG.pdf

Battery Calculator:

Netvox Battery Calculator

Netvox LoRa Command Resolver:

LoRa Command Resolver

R718F - Netvox LoRaWan Wireless Reed Switch Open/Close Detection Sensor
