Multi-tech MultiConnect® mDot™ - Long Range 868/915 MHz LoRa™ Module

The MultiConnect® mDot™ is a secure, CE/FCC certified, ARM® mbed™ programmable, low-power RF module, that provides long-range, low bit rate M2M data connectivity to sensors, industrial equipment and remote appliances.

The MultiConnect mDot is LoRaWAN™ 1.0 compliant, providing bi-directional data communication up to 10 miles / 16 km line-of-sight and 1-3 miles / 2 km into buildings, using sub-GHz ISM bands in North America and Europe.

As the first ARM mbed Platform listed on mbed.org that is industry certified and deployment ready, applications can be written and compiled quickly online using developer friendly libraries, downloaded and hosted within the mDot. Decision making and control is distributed to the edge, enabling data to be more actionable without the heavy lift required to optimize RF performance, implement complex M2M middleware and security protocols needed to deploy a low touch install.

mDots bring intelligence, reduced complexity and a lower overall bill of material cost to the very edge of the network while supporting a variety of electronic interfaces to connect just about any “Thing” for years on battery power.

KEY BENEFITS

··Up to 10 miles / 16 km range

··Deep in-building penetration – 1 to 3 miles / 2 to 5 km

··Developer friendly to integrate and quickly deploy assets

··Runs for years on batteries

FEATURES

··FCC/CE end-certified for use in North America & Europe

··2-way duplex communication, ideal for emergency and mission critical applications

··Multiple I/O interfaces for most any “Thing”

··Data rates 293bps-20Kbps+ LoRa™ up to 300Kbps FSK

··LoRaWAN 1.0 compliant

··Developer friendly ARM mbed libraries provides customization capability for specific applications

Model	Description
MTDOT-915-X1-SMA	915 MHz XBee LoRa SMA NAM
MTDOT-915-X1P-SMA	915 MHz XBee LoRa SMA w/Programming Header NAM
MTDOT-915-X1-UFL	915 MHz XBee LoRa UFL NAM
MTDOT-915-M1-UFL	915 MHz SMT LoRa UFL NAM
MTDOT-915-M1-TRC	915 MHz SMT LoRa RF Pad NAM

Developer Kit and Accessories
MTUDK2-ST-MDOT MTMDK-ST-MDOT	Developer Kit(mDots sold separately) includes SMA antenna & USB cable mDot micro developer kit

mDot Datasheet: mDot.pdf

MTMDK Datasheet: MTMDK_UG.pdf

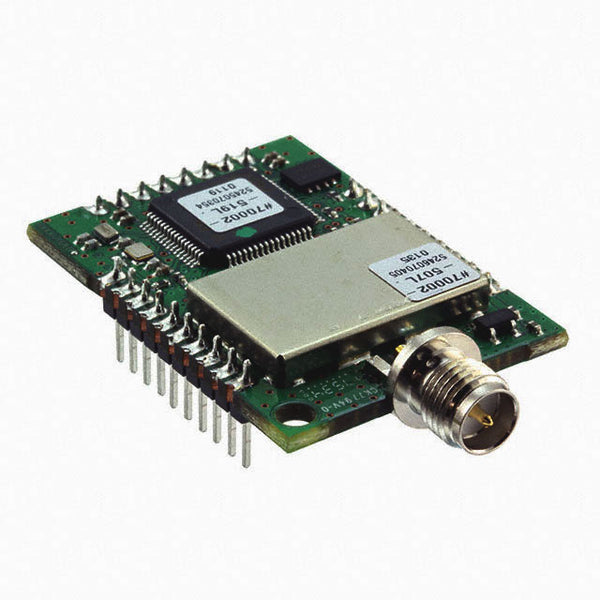

MTDOT-915-X1P-SMA - Multitech mDot 915 MHz XBee LoRa SMA w/Programming Header
