Elsys LoRa ERS Sound sensor - Integrated with Temperature / Humidity / Light / Sound / Motion sensor

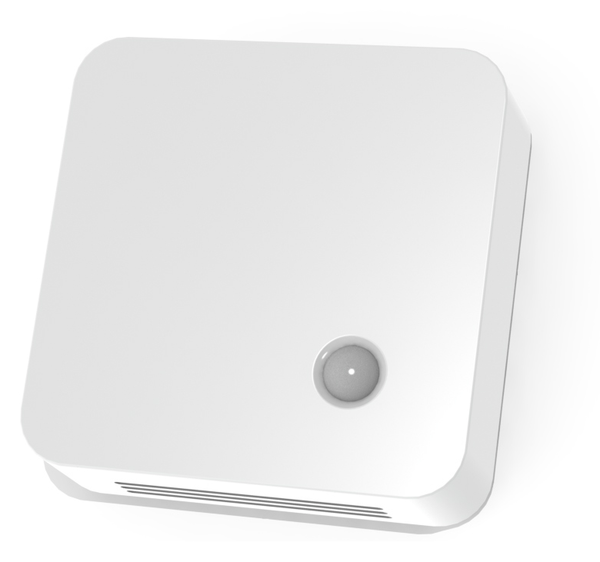

ERS Sound is a LoRaWAN™ room sensor that measures indoor environment. ERS sound is enclosed in a room sensor box and is designed to be wall mounted. Inside the ERS you will find five internal sensors: Temperature sensor, humidity sensor, light sensor, Sound level sensor (peak and average) and a motion sensor (PIR). ERS sound is powered by two 3,6V AA lithium battery(ER14505). The Battery life is estimated to be 2+ years but depends on sample interval, transmit interval, data rate and environmental factors. You are welcome to use our online battery lifetime calculator. All Elsys sensors are equipped with NFC (Near Field Communication) for easy configuration with an Android phone. With our application “Sensor Settings“, you can change sample rate, data rate, encryption keys, triggers, activation and much more. All our sensors are built on the LoRaWAN™ stack from Semtech. Channel plans for US902-928, EU863-870, AS923, AU915-928, KR920-923.

Specifications ERS/ERS-CO2/ERS-sound

LoRa Alliance Certified
Temperature
Humidity
Light
Motion (PIR)
CO2 (ERS-CO2)
Sound, peak and average (ERS-sound)
NFC for easy configuration
Size : 86x86x26mm
Accuracy: ± 0.5°C, ±2%rh
Resolution: 0.1°C, 0.1%rh
Approx. range: 8km*
Battery life: 10 years**/Approx. 3 years for ERS-sound
US902-928, EU863-870, AS923, AU915-928, KR920-923
2 x 3.6V AA lithium battery

Sensor application

Sensor startup

When the sensor starts up it loads configuration from the internal memory and merge it with user configuration. When the configuration is done the sensor writes the new configuration to the NFC chip. The sensor always writes new configurations to the NFC chip when something changes in the sensor or if NFC data is corrupted by a NFC writer or phone. The sensor always writes new configuration to NFC chip at startup. When configuration is done the sensor tries to join the network if OTAA (Over The Air Activation) is enabled.The sensor led flashes orange when it tries to join a network. The sensor tries to join the network every 10 second and increases the join timer at every failed attempt by 10%, up to maximum 1 hour. After startup,configuration and join the sensor enters sampling mode.

ERS

NFC read/write

When reading or writing NFC data to the sensor, it starts a timer and delays its actions for 5 seconds. This delay is for the possible bad connection inherited with NFC communication. Reasons for bad connection can be distance, location or rapid movement. After the delay, the sensor determines if the NFC data has changed or not. If the data has change the sensor reboots and starts from power up. When writing data to the sensor, try to get the best connectivity as possible. Locate the NFC antenna of the phone and sensor. Keep the 2 devices as close as possible and don’t move them while writing or reading. When you have written data to the sensor, let the sensor reboot and restart before trying to write again. You can always validate your settings by reading the NFC data after the sensor has restarted.

sensor nfc

Sampling mode

sample mode

Datasheet: ERS Sounds Datasheet.pdf

User Guide: ERS Sounds User Guide.pdf

Setting Parameter: ERS Setting Parameter.pdf

PayLoad: Uplink Payload.pdf

Downlink PayLoad: Downlink Payload.pdf

Battery life calculator

ERS Sound - Elsys room measurement LoRa sensor included Temp/Humidity/Light/Sound/Motion sensor
